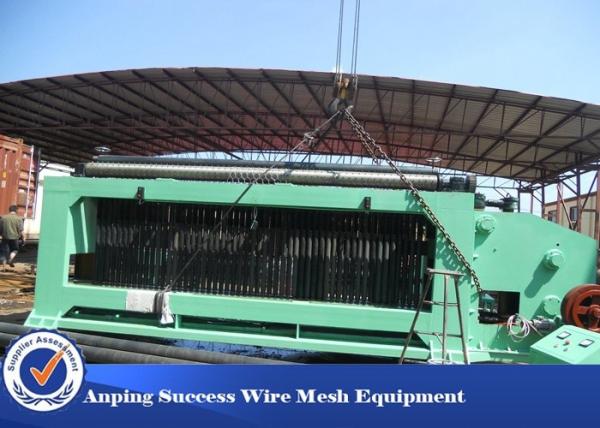

100x120 Gabion Making Machine Galvanized Material Or PVC Coated
Description
1. Gabion Mesh Machine adopts PLC automatic control and hydraulic drive,
2. Stable operation, low noise and high efficiency, and is an ideal machine for weaving large specification, broad width and thick wire diameter hexagonal wire mesh.
Application
It is mainly used as building material,It can be used in resevior for closure,and also seaves as highway guard rail netting,railway guard rail netting,green guard rail netting,side hill mesh case,flood fighting mesh case,dike dam guard rail netting,zoo guard rail netting,mine tunnel supporting mesh,grass land mesh,etc.
Specifications
| Product Specification(mm) | Maximum Breadth(mm) | Maximum Wire Diameter(mm) | Twist Ridge Count | Spindle Speed | Motor Power (kw) |
| | | | | | |
| 60X80 | 2300 | 3 | 3 | 25 | 11 |
| | 3300 | 3 | 3 | 25 | 15 |
| | 4300 | 3 | 3 | 25 | 22 |
| 80X100 | 2300 | 3 | 3 | 25 | 11 |
| | 3300 | 3 | 3 | 25 | 15 |
| | 4300 | 3 | 3 | 25 | 22 |
| 100X120 | 2300 | 3 | 3 | 25 | 11 |
| | 3300 | 3 | 3 | 25 | 15 |
| | 4300 | 3 | 3 | 25 | 22 |
| Theoretical Production Speed | | |
| Twist Mesh Hole Number/min | m/h | Overall Dimensions(LXWXH)mm | Quality(T) |
| 25 | 165 | 5200X1400X2400 | 14 |
| 25 | 165 | 6200X1400X2400 | 15 |
| 25 | 165 | 7200X1400X2400 | 16 |
| 25 | 195 | 5200X1400X2400 | 14 |
| 25 | 195 | 6200X1400X2400 | 15 |
| 25 | 195 | 7200X1400X2400 | 16 |
| 25 | 225 | 5200X1400X2400 | 14 |
| 25 | 255 | 6200X1400X2400 | 15 |
| 25 | 225 | 7200X1400X2400 | 16 |
The fully automatic production line mainly includes the following equipment:
1. Main Gabion Mesh Machine (Double block)
2. Wire tension machine
3. Gabion Mesh Winding Machine
4. Spring making Machine ( 6 shafts / 6 bars)
5. Air compressor
6. Wire pay-off bobbin
